Operational characteristics and technical data

Ultrafiltration is the method of fine water filtration. Application of the DOW™ UF ultrafiltration modules with hollow fibers made of the unique H-PVDF material provides almost complete removal of colloidal particles, majority of bacteria and viruses from the water, as well as reduction of color and oxidation of natural surface waters.

The tiniest pores of the ultrafiltration membrane sized 0.03 micron guarantee reduction of all the larger impurities, i.e. microbiological contaminants, suspended solids and large molecules of natural organic matter. Along with that, high porosity and innovation technology of the membranes production provide higher efficiency with low working pressures and save energy.

The ultrafiltration membrane elements are highly endurable and chemically resistant. Hence, it is possible to clean the elements with decontamination, alkaline and acid reagents, and to employ them long-term within harsh conditions.

Operation of the plant is periodical, the main operation mode is presented by filtration when purified water is supplied to the permeate tank. Approximately every 40-60 minutes the plant shifts to the flush mode (BW mode).

The cleaning is performed by the pump of the BW station which supplies the purified water from the permeate tank to the proper port of the module. The washing lasts about 2 minutes, and consists of several stages. One of the stages is blowing with compressed air. At regular intervals dosing of reagents for current chemical cleaning (CIP-cleaning) has to be supplied into the washing water. Automatic management of shifting the operation modes of the plant is provided by the controller and the set of automatic valves.

Approximately once a month the plant switches off the filtration process, and the chemical cleaning (CIP-cleaning) of the module with the CIP-station is performed manually.

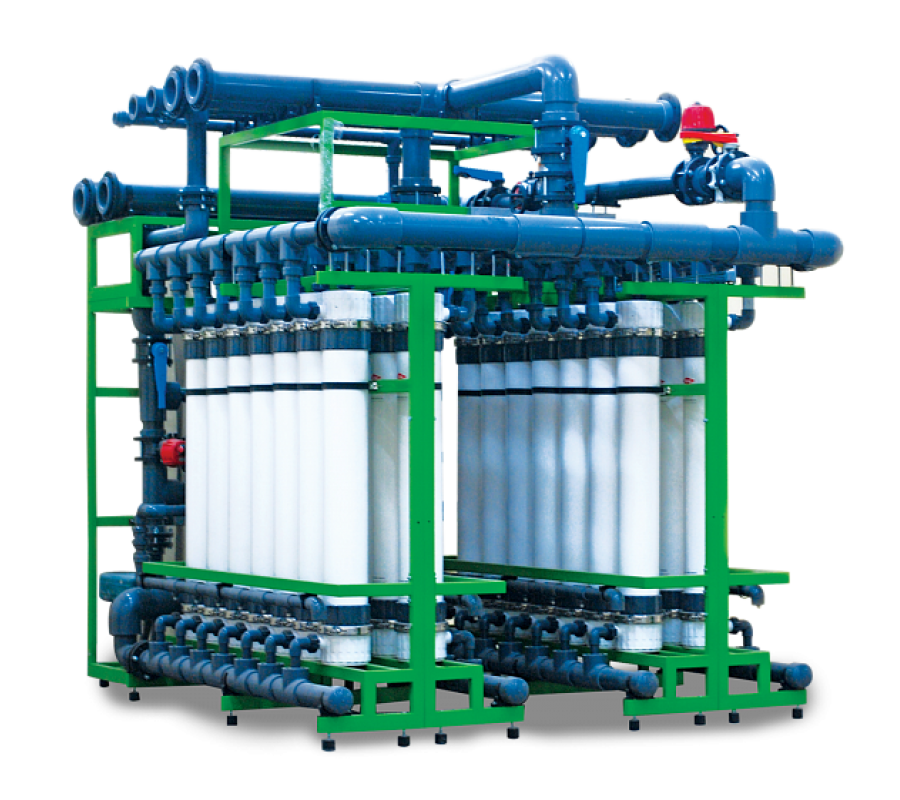

Φίλτρο υπερδιήθησης 480.000 λίτρα / ημέρα.
