Μηχάνημα αυτόματης πώλησης νερού KA-250
Technical characteristics
Nominal capacity for purified water, L/hour (T = 20 °C) |
200...250 |
Maximum capacity for purified water, L/day (T = 20 °C) |
6000 |
Power consumption, kW |
not more than 1 |
Power supply |
230 V, 50 Hz |
Performance class |
IP 54 |
Connection diameter: feed water concentrate |
DN15 DN32 - non-pressure |
Feed water pressure, bar |
2...4 |
Feed water temperature, °C |
15±5 |
Operating pressure, bar |
not more than 12 |
Water purification unit parameters for operation mode:
|
270...350
200...250
70...100
8...11 |
Weight without water, kg |
not more than 150 |
Maximum weight with water, kg |
not more than 200 |
Dimensions (height x width x depth), mm |
1900x750x850 |
Requirements to the feed water
Hardness, meq/L |
≤ 20 |
Iron, mg/L |
≤ 0.1 |
Manganese, mg/L |
≤ 0.05 |
Chemical oxygen demand, mg O2/L |
≤ 4 |
TDS, mg/L |
≤ 2000 |
Silicates, mg/L |
≤ 20 |
Residual chlorine, mg/L |
≤ 0.1 |
Temperature of feed water, °С |
+10...+20 |
Components of the vending machine
-
Metal housing
-

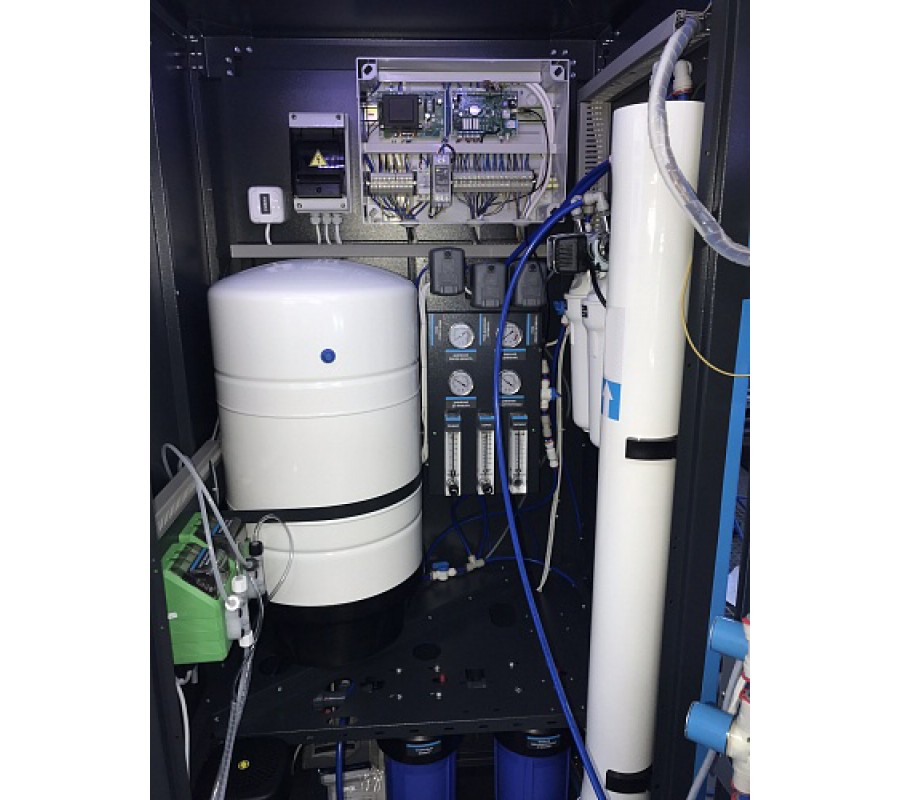

Assembled water purification system
-
Controller with integrated GSM/GPRS module
-
Pouring terminal
-
Antiscalant dosing unit
-
Discharge to sewers under pressure
-
Bill acceptor
-
Coin acceptor
Optional:
-
Remineralization unit
-
Multifunctional monitor
-
Thermostabilization and housing heating
-
Individual branding
The vending machine is intended for cold water only. Maintenance and monitoring of its operation should be carried out by qualified personnel of the service centers. The maintenance procedure includes regular replacement of replacement elements, replenishment of antiscalant and salts for remineralization.
Name |
Recommended filter, reagent |
Replacement interval |
Sediment filter |
CPV451020ECOEXP |
pressure drop of 0.5 bar every 3 months after 30 m3 of purified water |
GAC filter |
CHV4510ECOEXP |
pressure drop of 0.5 bar every 3 months after 30 m3 of purified water |
RO membrane |
XLE4040 |
replacement - once a year chemical cleaning - every 6 months, or according to the system operation passport |
Membrane tank of the installation |
ТANK20 |
if necessary - replacement, increasing of pressure, disinfection |
pH adjustment filter |
СAL2510 |
every 3 months after 30 m3 of purified water |
Odor and taste improvement filter |
CHVCB2510NV |
every 3 months after 15 m3 of purified water |
Antiscalant |
ECOT200005 |
when necessary |
Water remineralization (optional) |
|
when necessary |
UV lamp |
HR60UV |
once a year |
Monitoring of operation of the force main sewerage (optional) |
|
when necessary |

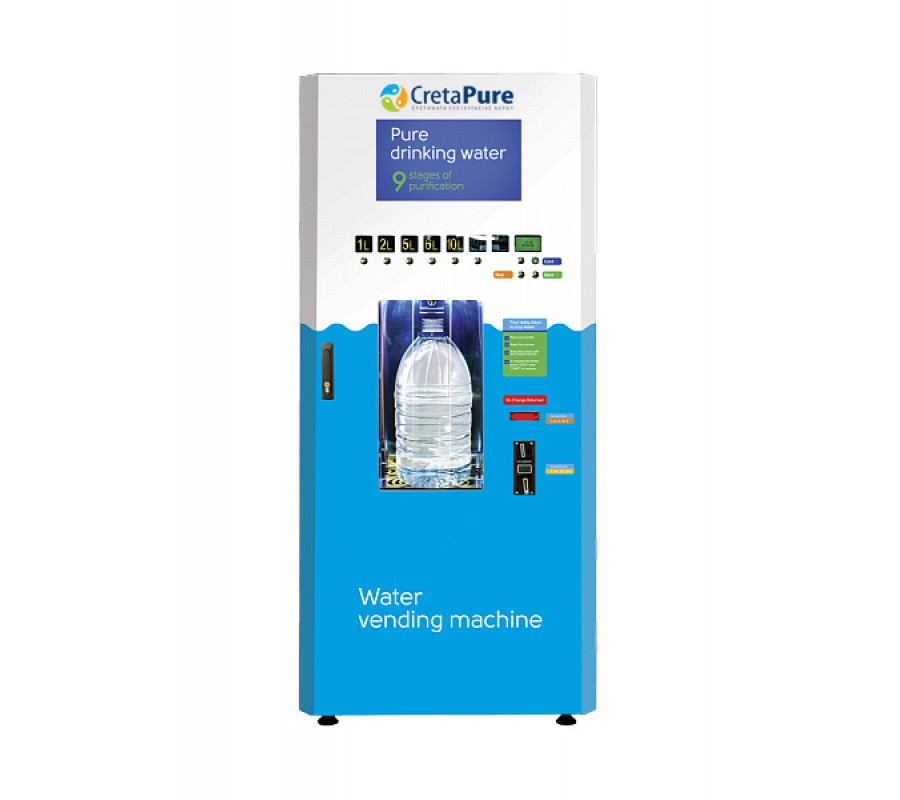

Μηχάνημα αυτόματης πώλησης νερού KA-250.
The KA-250 vending machine is intended for purification and pouring of water into consumer bottles. It represents the ready-to-use module consisting of several functional units:
-
The water purification unit includes 9 consecutive stages: reduction of sediments, of chlorine with activated carbon, of water color, water softening, removal of up to 99.8% of all impurities with the reverse osmosis membrane, adjustment of water pH, improvement of taste and odor, remineralization and UV disinfection.
-
The water pouring unit is a terminal for placing and filling the customer bottles with water, volumes 0.5 to 18.9 L.
-
The payment unit is presented by the bill acceptor, coin acceptor and magnetic card reader.
-
The telemetry unit, the key component of which is a multifunction controller with GSM/GPRS module. Provides the following operations: control of the reverse osmosis system operation and pouring process, blocking of the operation in emergency situations, display of warning and emergency messages, remote transmission of the emergency messages by SMS.
Key advantages
-
Quick start - start earning in 3 weeks
-
Independency - the machine gains profit 24/7 and does not require constant control
-
High profitability - the cost of 1 liter of water is 3 times lower than alternatives
-
Quickly pays off - the average return on investment period is 8-12 months
-
Maintenance - our network of service centers provides technical support in all the regions of the country
-
Stable efficiency of the operation provided by the Dow Filmtec™ membranes (USA)
-
Remote control - GSM/GPRS module provides monitoring by Internet
-
Anti-vandal protection - housing made of durable material and shock-resistant control panel
-
Compact - the minimum rent required, since only 1 m2 of space is sufficient for the machine
-
Quality guarantee confirmed by international CE and ISO certificates
